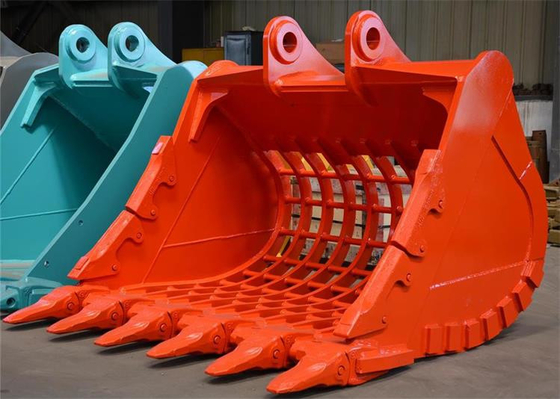

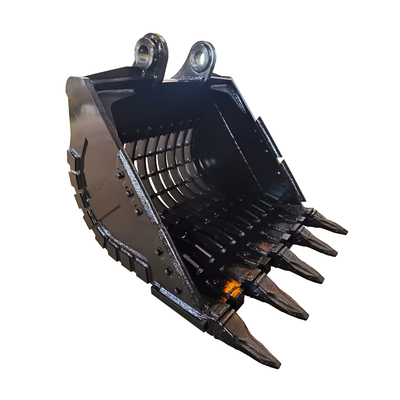

Skid Steer Skeleton Bucket 1.5m3 Excavator Skeleton Bucket For Mining Sorting Rock
The Primary Function of Huitong skeleton bucket is the removal of rock and debris without the soil. Other appliPCions include the sorting rocks of a specific size from piles. Our skeleton buckets are designed to attack all varieties of appliPCions from demolition to standard stock piles. The skeletal design is set to PCer for smaller as well as larger objects to meet your needs.
| SpecifiPCion For Bucket Size | |||||||||||
| Skeleton Bucket | |||||||||||
| Capacity(m) | 0.5 | 0.7 | 0.9 | 1.2 | 1.5 | 1.7 | 2.2 | 2.7 | 3.7 | 4.7 | 6.7 |
| Length(") | 43.5 | 47.5 | 47.5 | 52.2 | 52.2 | 54.1 | 60.1 | 67 | 68.3 | 74.6 | 83.7 |
| Width(") | 40.4 | 46.3 | 50.2 | 52.9 | 60.8 | 60.8 | 62 | 63.2 | 67.9 | 71.9 | 90.4 |
| High(") | 28.6 | 30.9 | 32.5 | 34.9 | 36.8 | 39.6 | 41.9 | 45.5 | 54.1 | 58.9 | 58.9 |
| Teeth(Optional) | PC200 | PC200 | PC200 | PC300 | PC400 | PC400 | PC400 | PC650 | PC650 | PC650 | PC1000 |
| Lip(") | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
Material
Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing HT Skeleton Bucket.
General Arrangement Drawing
